Flexibility to Re-model, Extend and Re-site GFS Anaerobic Digester Storage Tanks
Anaerobic digestion tanks are airtight tanks with different configurations. Anaerobic digestion tank is a liquid storage tank used to digest the stored complex mud/waste water into simpler compounds, and then release gas, which is then used as fuel or exposed to the environment within allowable limits. Complex mud/sludge/waste water includes black water, gray water, brown water (including sewage), farm waste, food waste, human waste, urban waste, industrial waste, etc., which are used as waste for digestion.
Center Enamel is a leading design and manufacturing company that provides anaerobic gigester tank design and manufacture, installation. Glass fused to steel provides superior corrosion resistance to acids, alkalis, water and other chemical solutions. Glass fused to steel technology is the premium coating technolongy in storage tank industry. As a result of this chemical resistance, glass linings can serve for more than 30 years in environments that would quickly render most metal vessels unserviceable.
Glass fused to steel tank is a kind of factory fabrication tank , which made of glass coated on Ti-rich special steel plates . The steel plates are coated with enamel powder ( mixing with 10-20 different materials ) and burned in oven ( Temperature from 800 celsius to 950 celsius ) , which makes the steel sheet and glass coated greatly blend together . High recommended , all of the holes on the tank wall will be precut on the workshop , instead of on job site . According to the size of hole , there will be some flanges nozzles along with .
GFS Anaerobic Digester Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds |
GFS Anaerobic Digester Storage Tanks manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2021 Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Product Tags:
|
|

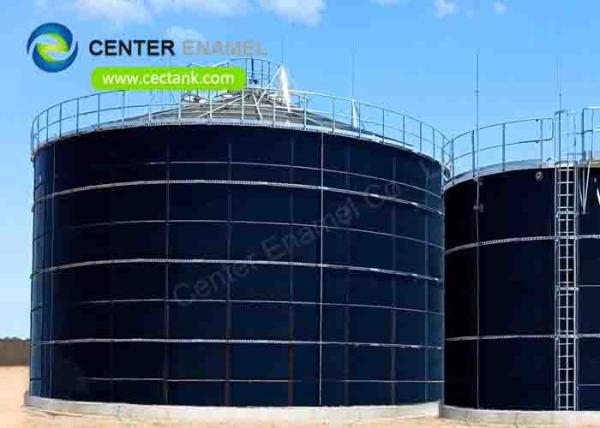

Flexibility Biogas Plant Project GFS Anaerobic Digester Storage Tanks Images
|
